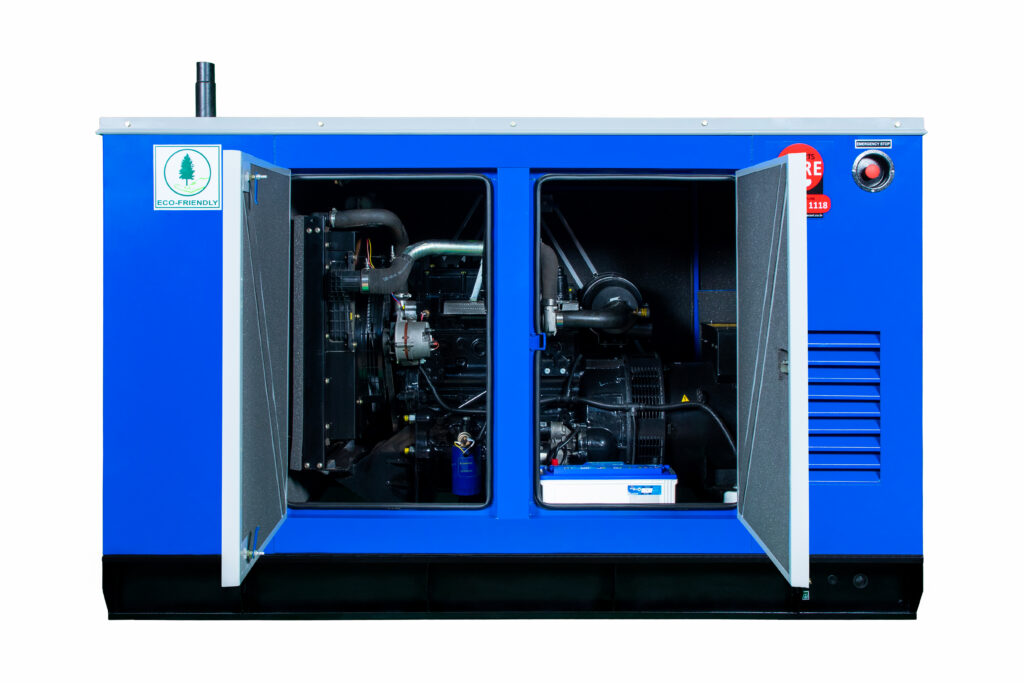

50,62.5KVA/G 62.5-II
HOME / 50,62.5KVA/G 62.5-II
OUR PRODUCTS
- 7.5KVA,10KVA,12.5KVA / G 12.5-II
- 15kVA / G 15–II
- 20kVA / G 20-II
- 25KVA,30KVA,35KVA / G 30–II
- 40KVA,45kVA / G 40-II
- 50KVA,62.5KVA / G 62.5-II
- 7.5KVA,10KVA,12.5KVA / G 12.5-II
- 82.5kVA / G 82.5-II
- 100kVA / G 100-II
- 125kVA / G 125-II
| Technical Specification | ||||
|---|---|---|---|---|
|
Prime Rating |
KVA |
50 |
62.5 |
|
|
|
KW |
40 |
50 |
|
|
Output Voltage |
V |
415(3Ø) |
415(3Ø) |
|
|
Noise Level |
dBA |
<75 |
<75 |
|
|
Power Factor |
Lagging |
0.8 |
0.8 |
|
|
Frequency |
HZ |
50 |
50 |
|
|
Governing Class |
Content |
A1 |
A1 |
|
|
Starting System |
Volts-DC |
12 |
12 |
|
|
Fuel Tank Capacity |
Lit |
120 |
120 |
|
|
DG set dimensions approx (LxWxH) |
mm |
2800X1050X1500 |
2800X1050X1500 |
|
|
DG set Weight |
kg |
1300 |
1300 |
|
| ENGINE SPECIFICATIONS | ||||
|---|---|---|---|---|
|
Make |
|
Escorts |
Escorts |
|
|
Model |
|
G62.5 |
G62.5 |
|
|
Rated Power at 100% Load |
HP |
88 |
88 |
|
|
Cooling System |
|
liquid |
liquid |
|
|
Aspiration |
NA/TCI/TCA |
TCI |
TCI |
|
|
Cylinders |
No. |
4 |
4 |
|
|
Bore x Stroke |
mm |
98×122 |
98×122 |
|
|
Displacement |
CC |
3680 |
3680 |
|
|
Fuel Consumption @ 50% Load |
Ltrs/Hr |
5 |
5.7 |
|
|
Fuel Consumption 75% Load |
Ltrs/Hr |
8.5 |
9 |
|
|
Fuel Consumption 100% Load |
Ltrs/Hr |
11 |
11.5 |
|
| ALTERNATOR SPECIFICATIONS | ||||
|---|---|---|---|---|
|
Make |
|
Stamford/CGL |
Stamford/CGL |
|
|
Class of insulation |
|
Class H |
Class H |
|
|
Power Factor |
Lagging |
0.8 |
0.8 |
|
